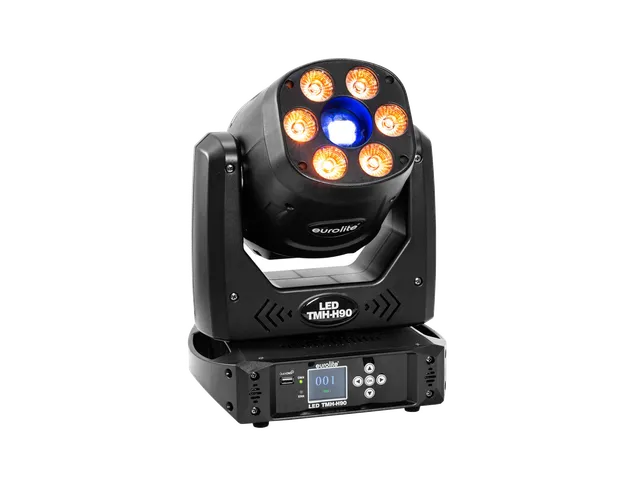

TMH-H90
Eurolite — Truss-moving-head beam for rent
Eurolite TMH-H90 truss-moving-head beam for rent. Pickup or local delivery; a weekend counts as four days.
Rent from €25 / day
—
Confirmed quote within 48 hours.
No prepayment — you only pay after you receive the confirmed quote.
- Type
- Truss moving-head beam
- Brand
- Eurolite
- Power supply
- 100-240 V AC, 50/60 Hz
- Power consumption
- 135 W
- Protection class
- Protection class I
- Power connection
- Mains input via P-Con (blue), power supply cord with safety plug (provided)
- Power output
- P-Con (grey), power linking
- Fuse
- 5 x 20 mm, T 2 A, replaceable
- Lamp type
- LED lamp
- LED type
- 1x 90 W COB (chip-on-board) cold white (CW) + 6x 10 W high-power 6in1 RGBWA/UV (homogeneous color mix)
- Max. TILT movement
- 200° exact positioning (16 bit resolution), auto position correction (feedback)
- Max. PAN movement
- 540° exact positioning (16 bit resolution), auto position correction (feedback)
- Flash rate
- 2 - 22 Hz
- Equipment
- 3-fold prism; rotating gobo wheel; static gobo wheel; motor-driven focus; color wheel
- Color generation
- Color wheel with 7 dichroic filters plus open; half colors selectable; rainbow effect with adjustable speed in both directions
- Gobos
- Static gobo wheel: 7 gobos + open, shake effect; rotating gobo wheel: 6 gobos + open, shake effect; gobos changeable via slot-in system
- DMX channels
- 25
- DMX input
- 3-pin XLR (M)
- DMX output
- 3-pin XLR (F)
- Cooling
- Cooling fan
- Control
- Stand-alone; DMX; sound to light via microphone; master/slave; QuickDMX via USB (optional); W-DMX wireless via USB (optional); CRMX by LumenRadio via USB (optional)
- Fixtures available for
- Light Captain; EASY SHOW 3
- Projection
- Flicker-free
- PWM frequency
- 29300 Hz
- Beam angle
- 13° spot
- Beam angle (1/2 peak)
- Spot 13°; wash effect 20°
- Beam angle (1/10 peak)
- Wash effect 38°
- Illuminance in Lux (lx)
- Spot CW 1m: 49373 lx, 3m: 6186 lx, 6m: 1606 lx; wash R 1m: 974 lx, 3m: 101 lx, 6m: 26 lx; wash G 1m: 2008 lx, 3m: 244 lx, 6m: 66 lx; wash B 1m: 518 lx, 3m: 49 lx, 6m: 13 lx; wash CW 1m: 2527 lx, 3m: 257 lx, 6m: 69 lx; wash A 1m: 733 lx, 3m: 83 lx, 6m: 21 lx; wash UV 1m: 16 lx, 3m: 2 lx, 6m: 1 lx; wash all 1m: 5885 lx, 3m: 703 lx, 6m: 184 lx
- Housing color
- Black
- Display type
- Multicolor LCD display
- Dimensions
- Width: 25.0 cm; Depth: 22.0 cm; Height: 36.0 cm
- Weight
- 6.50 kg
- Noise classification
- Class 3 (clearly perceptible sounds)
Photos
Product video
Photos & specifications courtesy of Steinigke Showtechnic
